Adding a new feature to a dataset, right from within your styled map.

Adding New Features to Your Data

Open a map containing the layer you want to add features to.

Once you are in the map editor, zoom and pan your map to the area where you wish to add the feature, then click on a nearby feature from the same layer to open the popup window.

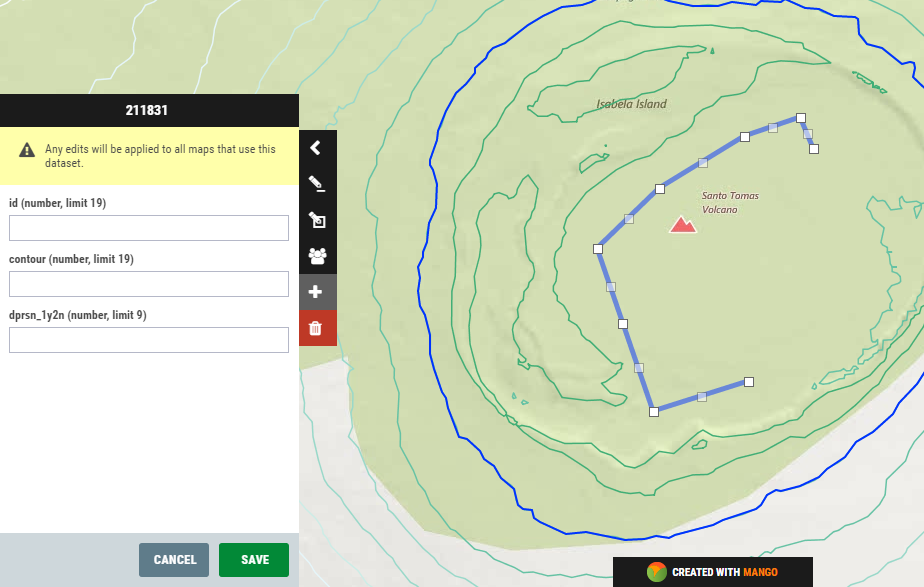

From the editing toolbar on the right of the popup, click the button to initiate the feature creation tool. Add your point, line, or polygon by clicking on map. You can fine tune the shape by clicking and dragging the corner nodes, or for point features, just click and drag the marker to your desired location.

Adding new Geometry

To add a new feature, click the button on the Data Edit toolbar to initiate the geometry drawing tool.

Drawing Points

Click on the map in your desired location to drop a marker. Drag the marker to re-position. Once your marker has been created, add your attribute data in the popup, then click SAVE to save the feature in the dataset.

Drawing Lines

Start drawing a line by clicking on the map. Continue clicking points to extend the line. Adjust the line by dragging corner or center nodes, or delete a node by clicking on the node itself. Once you are done, add your attribute data in the popup, then click SAVE.

Drawing Polygons

Add a polygon by clicking 3 points on the map. This creates a closed polygon shape, from which you can click and drag the node handles to adjust your polygon to the desired shape. Add your attribute data in the form in the popup, then click SAVE.

Attribute Data

The form for adding attribute data will appear once you have created the geometry. It is not possible to add new attribute fields to the feature from within Mango.
